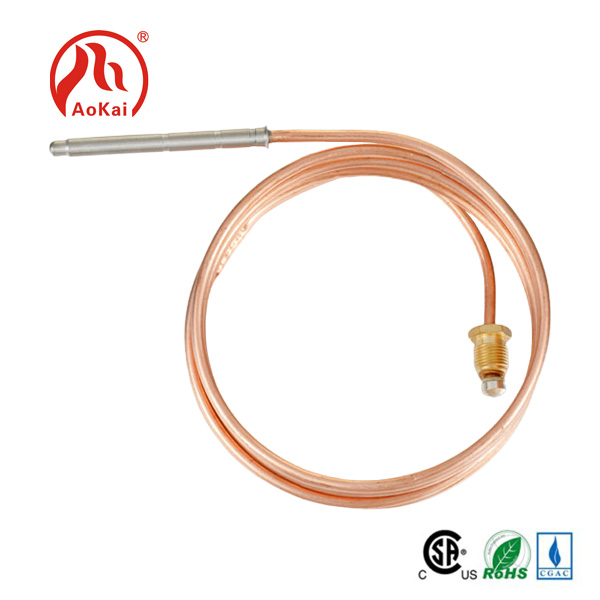

Flexible Thermocouple

1. Flexible Thermocouple Product Introduction

Valve, Thermocouple, Plastic Black Bakelite Knob

Suitable for Low Pressure Repair Control System for Grill, Fire Pit, Fireplace & Heater

2.Product Parameter (Specification) of Flexible Thermocouple

Thermocouple is one part of gas safety protection system .

Electric potential:(600~650°C)≥8 mV

Resistance(room temperature):setting value ±15%

Technical parameters

Name

Flexible thermocouple for gas oven,BBQ

Model

KE-470

Type

Thermocouple

Material

Cooper(thermocouple head:80%Ni,20%Cr)

Cable-Silicone, Cooper, Teflon

Gas source

NG/LPG

Voltage

Potential Voltage:≥30mv.Work with the electromagnetic valve:≥12mv

Fixing method

Screwed or Stucked

Thermocouple length

Customized

3.Product Details

Thermocouple with temperature switches internal, In the working such as the gas oven non-working area temperature more than temperature switches rated temperature, at this time temperature switches will automatically cut off power supply, to have safety protection.

4.Product Feature And Application of Flexible Thermocouple

It proudly holds some of the tightest uncertainties of measurement for thermal calibrations held by a commercial calibration laboratory.

Flexible Thermocouple

Thermocouple heated part must be heating on tip 3 to 5mm. pls do not put tip into flame,it will be arouse electric decline and life short.Keep radiating well for thermocouple fixed place backer and plus-minus thread

Flexible Thermocouple

Decline the accumulative heat of fix broad and thermocouple copper coat.It is benificial to the closing valve time.

5.FAQ

Q:Could you provide me the shortest lead time?

A:We have materials in our stock,if you really need,you can tell us and we will try our best to satisfy you.
