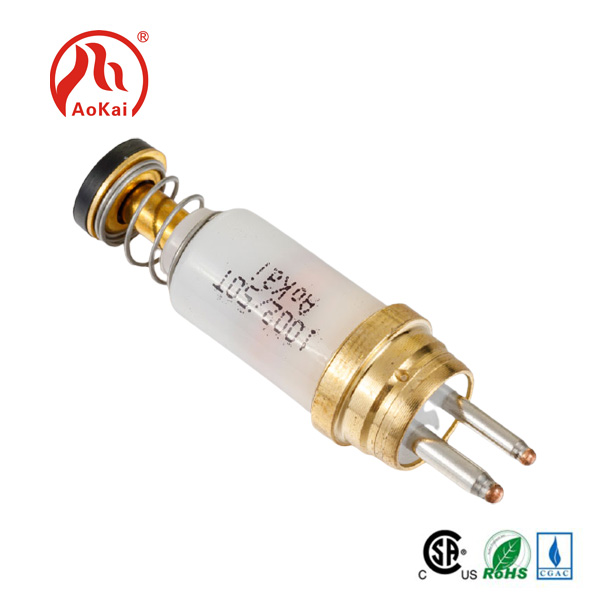

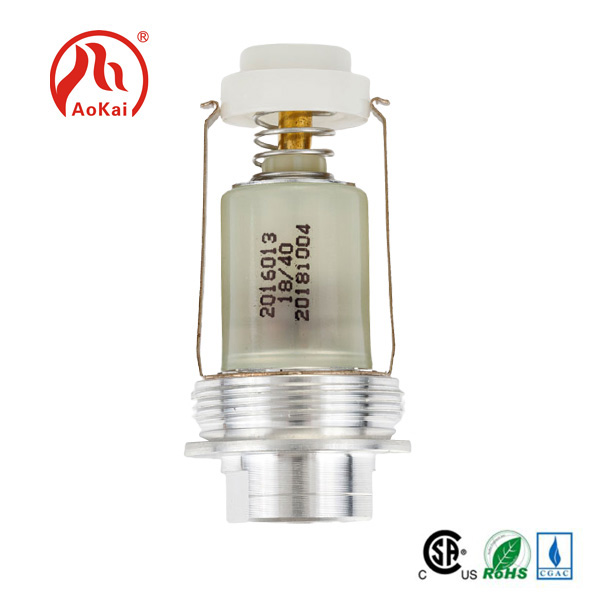

The Aokai® Gas Indoor Vented Gas Heater Solenoid Valve solenoid valve is an electrically activated valve, typically used to control the flow or direction of air or liquid in fluid power systems.
Solenoid valves are used in both pneumatic and hydraulic fluid power systems, and most often in either poppet or spool configurations.
1.The Aokai® Gas Indoor Vented Gas Heater Solenoid Valve Introduction
The spool or poppet of the valve is connected to a ferrous metal plunger, which is typically spring centered or spring offset. The plunger slides within a core tube of non-ferrous metal, which itself is surrounded by a coil of electrical windings.
2.Product Parameter (Specification) of Gas Indoor Vented Gas Heater Solenoid Valve
Technology data
Opening current ≤70mA-180mA also can according to request of customers
Closing current ≥ 15mA-60mA also can according to request of customers
Inner resistance(20°C) 20mΩ±10%
Spring pressure 2.6N±10%
Ambient temprature -10°C - 80°C
3. Product Qualification of Gas Indoor Vented Gas Heater Solenoid Valve
Company with ISO9001:2008, CE,CSA certification
All material with ROHS and Reach standard
4.Product Feature And Application
The most basic solenoid valves are two-way, two-position poppet valves, which simply open and close to allow flow when their coil is energized. They are available as “normally-open” and “normally-closed” versions, which means normally-flowing and normally-blocked, respectively. Normally-open in fluid power is the opposite of normally-open in electronics, which means the switch or contact is open and not flowing electrons.
The Aokai®Gas Indoor Vented Gas Heater Solenoid Valve
solenoid valves consist of a machined spool that can slide within a machined valve body. Each end of the spool can have a plunger attached, allowing the solenoid valve to be pushed in either direction, allowing three positional envelopes.
5.FAQ
how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
